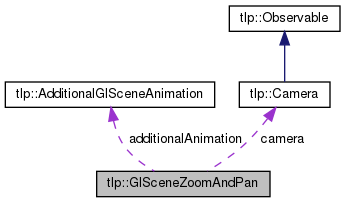

Collaboration diagram for tlp::GlSceneZoomAndPan:

Public Member Functions
	GlSceneZoomAndPan (GlScene *glScene, const BoundingBox &boundingBox, const std::string &layerName="Main", const int nbAnimationSteps=50, const bool optimalPath=true, const double p=sqrt(1.6))

int	getNbAnimationsStep () const

void	setAdditionalGlSceneAnimation (AdditionalGlSceneAnimation *additionalAnimation)

void	setNbAnimationSteps (const int nbAnimationSteps)

void	zoomAndPanAnimationStep (int animationStep)

Protected Attributes
AdditionalGlSceneAnimation *	additionalAnimation

double	b0

double	b1

Coord	camCenterEnd

Coord	camCenterStart

Camera &	camera

bool	doZoomAndPan

int	nbAnimationSteps

bool	optimalPath

double	p

double	r0

double	r1

double	S

double	sA

double	sB

double	u0

double	u1

Vector< int, 4 >	viewport

double	w0

double	w1

double	wm

float	zoomAreaHeight

float	zoomAreaWidth

Detailed Description

A convenient class to perform Zoom and Pan animation on Tulip OpenGL scene.

This class allow to perform a smooth and efficient zooming and panning on Tulip OpenGL scene. The algorithm used to perform this task is the one published in: Jarke J. van Wijk and Wim A.A. Nuij, "Smooth and efficient zooming and panning" For more details, the paper can be downloaded at the following url: http://www.win.tue.nl/~vanwijk/zoompan.pdf Even if this class contains the whole Zoom and Pan implementation, it is not aimed to be used directly because its role is only to compute new camera parameters. Use the derived class QtGlSceneZoomAndPanAnimator in the tulip-gui library instead to perform the animation.

Definition at line 76 of file GlSceneZoomAndPan.h.

Constructor & Destructor Documentation

◆ GlSceneZoomAndPan()

tlp::GlSceneZoomAndPan::GlSceneZoomAndPan	(	GlScene *	glScene,
		const BoundingBox &	boundingBox,
		const std::string &	layerName = `"Main"`,
		const int	nbAnimationSteps = `50`,
		const bool	optimalPath = `true`,
		const double	p = `sqrt(1.6)`
	)

GlSceneZoomAndPan constructor

Parameters

glScene	the Tulip OpenGL scene on which to perform zooming and panning
boundingBox	the bounding box in scene coordinates on which the Tulip OpenGL scene has to be zoomed and panned. At the end of the animation, the viewport will be zoomed and centered on the content of that bounding box.
layerName	The name of the layer animation should be done on
nbAnimationSteps	the number of steps to perform during the animation
optimalPath	if true zooming and panning will be combined at each step of the animation, if false the scene will be zoomed out/in, panned then zoomed in/out
p	zoom/pan trade-off parameter, adjust it according to your needs

Member Function Documentation

◆ getNbAnimationsStep()

int tlp::GlSceneZoomAndPan::getNbAnimationsStep ( ) const

inline

Method which return the number of animation steps

Definition at line 109 of file GlSceneZoomAndPan.h.

◆ setAdditionalGlSceneAnimation()

void tlp::GlSceneZoomAndPan::setAdditionalGlSceneAnimation ( AdditionalGlSceneAnimation * additionalAnimation )

Method to add an additional scene animation while zooming and panning

Parameters

additionalAnimation The animation to add

◆ setNbAnimationSteps()

void tlp::GlSceneZoomAndPan::setNbAnimationSteps ( const int nbAnimationSteps )

inline

Method to set the number of animation steps

Definition at line 116 of file GlSceneZoomAndPan.h.

◆ zoomAndPanAnimationStep()

void tlp::GlSceneZoomAndPan::zoomAndPanAnimationStep ( int animationStep )

Method which performs the zoom and pan animation. Its role is to compute new camera parameters at step animationStep. The scene is not redrawn with this method, you have to call the draw method on the associated GlScene object
