tlp::GLInteractorComposite Class Reference

#include <GLInteractor.h>

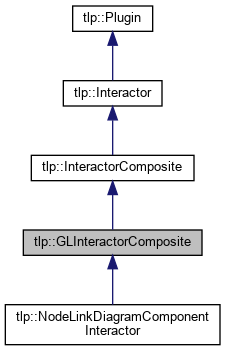

Inheritance diagram for tlp::GLInteractorComposite:

Collaboration diagram for tlp::GLInteractorComposite:

Public Slots
virtual void	compute (tlp::GlMainWidget *)
virtual void	draw (tlp::GlMainWidget *)
Public Slots inherited from tlp::InteractorComposite
void	install (QObject *target) override
void	setView (tlp::View *view) override
void	undoIsDone () override
void	uninstall () override
Public Slots inherited from tlp::Interactor
virtual void	install (QObject *target)=0
virtual void	setView (tlp::View *)=0
virtual void	undoIsDone ()=0
virtual void	uninstall ()=0

Public Member Functions
	GLInteractorComposite (const QIcon &icon, const QString &text="")
Public Member Functions inherited from tlp::InteractorComposite
	InteractorComposite (const QIcon &icon, const QString &text="")
QAction *	action () const override
iterator	begin ()
const_iterator	begin () const
QCursor	cursor () const override
iterator	end ()
const_iterator	end () const
void	push_back (InteractorComponent *component)
void	push_front (InteractorComponent *component)
bool	showContextMenu (const QPoint &, const QPointF &) override
tlp::View *	view () const override
Public Member Functions inherited from tlp::Interactor
std::string	category () const override
virtual QLabel *	configurationDocWidget () const
virtual QWidget *	configurationOptionsWidget () const
virtual QWidget *	configurationWidget () const
virtual void	construct ()=0
std::string	icon () const override
virtual bool	isCompatible (const std::string &viewName) const =0
virtual unsigned int	priority () const =0
Public Member Functions inherited from tlp::Plugin
virtual std::string	author () const =0
virtual std::string	date () const =0
void	declareDeprecatedName (const std::string &oldName)
std::string	deprecatedName ()
virtual std::string	group () const =0
virtual int	id () const
virtual std::string	info () const =0
virtual std::string	major () const
virtual std::string	minor () const
virtual std::string	name () const =0
virtual std::string	programmingLanguage () const
virtual std::string	release () const =0
virtual std::string	tulipMajor () const
virtual std::string	tulipMinor () const
virtual std::string	tulipRelease () const =0

Additional Inherited Members
Public Types inherited from tlp::InteractorComposite
typedef QList< InteractorComponent * >::const_iterator	const_iterator
typedef QList< InteractorComponent * >::iterator	iterator
Static Public Member Functions inherited from tlp::Interactor
static void	setupConfigWidget (QWidget *)
Protected Slots inherited from tlp::InteractorComposite
void	lastTargetDestroyed ()
Protected Member Functions inherited from tlp::InteractorComposite
QObject *	lastTarget () const
void	setLastTarget (QObject *)
Protected Member Functions inherited from tlp::Interactor
bool	eventFilter (QObject *obj, QEvent *ev) override
Protected Attributes inherited from tlp::InteractorComposite
QList< tlp::InteractorComponent * >	_components
Protected Attributes inherited from tlp::Plugin
std::string	oldName
Properties inherited from tlp::Interactor
QAction	action
QCursor	cursor
unsigned int	priority
tlp::View	view

Detailed Description

The GLInteractorComposite class behaves like a InteractorComposite but is meant to store GLInteractorComponent.

Warning

Only GLInteractorComponent that are stored into a GLInteractorComposite will be able to do OpenGL rendering. Storing them into an InteractorComposite will have no effect.

Definition at line 73 of file GLInteractor.h.

Member Function Documentation

compute

virtual void tlp::GLInteractorComposite::compute ( tlp::GlMainWidget *  )

virtualslot

Calls the compute method on every sub-components.

Note

You can subclass this method to add custom behavior before or after components are called.

draw

virtual void tlp::GLInteractorComposite::draw ( tlp::GlMainWidget *  )

virtualslot

Calls the draw method on every sub-components.

Note

You can subclass this method to add custom behavior before or after components are called.
