tlp::ColorScale Class Reference

Use this class to create a color scale and perform color mapping. The color scale can be either gradient or predefined colors steps. If the color scale is a gradient, returned color are interpolated in function of the position. If the color scale isn't a gradient returned colors are the predefined colors steps. More...

#include <ColorScale.h>

Inheritance diagram for tlp::ColorScale:

[legend]

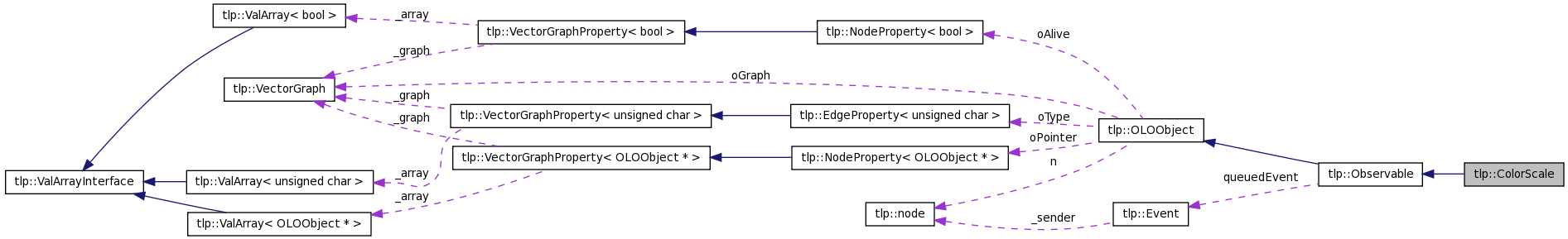

Collaboration diagram for tlp::ColorScale:

[legend]

List of all members.

Public Member Functions

• ColorScale (const bool gradient=true)
• ColorScale (const std::vector< Color > &colors, const bool gradient=true)
• ColorScale (const ColorScale &scale)
• ColorScale & operator= (const ColorScale &scale)
• virtual ~ColorScale ()
• virtual void setColorScale (const std::vector< Color > colors, const bool gradient=true)

  Configure the color scale. This method is used to configure the color scale. If the scale was previously configured the old configuration is lost.


• virtual void setColorAtPos (const float pos, const Color &color)

  Add a color to color scale at specific position. This method is used to add a color to the color scale at a specific position.


• virtual Color getColorAtPos (const float pos) const

  Compute the color for the given value.


• bool colorScaleInitialized () const

  Return true is the color scale was initialized.


• std::map< float, Color > getColorMap () const

  Return a map corresponding to the color scale. The index of the map is the position for the corresponding color in the color scale.


• bool isGradient () const

  Return true if the color scale is a gradient.


Protected Attributes

• std::map< float, Color > colorMap
• bool gradient
• bool colorScaleSet

---

Detailed Description

Use this class to create a color scale and perform color mapping. The color scale can be either gradient or predefined colors steps. If the color scale is a gradient, returned color are interpolated in function of the position. If the color scale isn't a gradient returned colors are the predefined colors steps.

 \// Creating the color scale.
 ColorScale colorScale;
 \// Color scale initialization : from blue to red with gradient.
 vector<color> colors;
 colors.push_back(Color(0,0,255));
 colors.push_back(Color(255,0,0));
 colorScale.setColorScale(colors,true);

 \//Get the color for the position 0.5 eq Color(127,0,127).
 colorScale.getColorAtPos(0.5);
 \//Reinit the color scale : from blue to red without gradient.
 vector<color> newColors;
 newColors.push_back(Color(0,0,255));
 newColors.push_back(Color(255,0,0));
 colorScale.setColorScale(colors,false);
 \//Get the color for the position 0.3 eq Color(0,0,255).
 colorScale.getColorAtPos(0.3);
 \//Get the color for the position 0.7 eq Color(255,0,0).
 colorScale.getColorAtPos(0.7);

---

Constructor & Destructor Documentation

tlp::ColorScale::ColorScale

(

const bool

gradient = true

)

tlp::ColorScale::ColorScale	(	const std::vector< Color > &	colors,
		const bool	gradient = true
	)

tlp::ColorScale::ColorScale

(

const ColorScale &

scale

)

virtual tlp::ColorScale::~ColorScale

(

)

[virtual]

---

Member Function Documentation

bool tlp::ColorScale::colorScaleInitialized

(

)

const [inline]

Return true is the color scale was initialized.

virtual Color tlp::ColorScale::getColorAtPos

(

const float

pos

)

const [virtual]

Compute the color for the given value.

Parameters:

pos

This value defines the position of the color in the scale and must be between 0 and 1.0.

Returns:

The color corresponding to the position in the scale if the position is beetween 0 and 1.0. If the position is smaller than 0 the color corresponding to the position 0 is returned and if the position is greater than 1.0 the color corresponding to the position 1.0 is returned.

std::map<float, Color> tlp::ColorScale::getColorMap

(

)

const [inline]

Return a map corresponding to the color scale. The index of the map is the position for the corresponding color in the color scale.

bool tlp::ColorScale::isGradient

(

)

const [inline]

Return true if the color scale is a gradient.

ColorScale& tlp::ColorScale::operator=

(

const ColorScale &

scale

)

Reimplemented from tlp::OLOObject.

virtual void tlp::ColorScale::setColorAtPos	(	const float	pos,
		const Color &	color
	)			[virtual]

Add a color to color scale at specific position. This method is used to add a color to the color scale at a specific position.

Parameters:

	pos	the position in the color scale (0 <= pos <= 1)
	gradient	If set to true, color scale is a gradient

virtual void tlp::ColorScale::setColorScale	(	const std::vector< Color >	colors,
		const bool	gradient = true
	)			[virtual]

Configure the color scale. This method is used to configure the color scale. If the scale was previously configured the old configuration is lost.

Parameters:

	colors	The colors to use in the color scale.
	gradient	If set to true, color scale is a gradient

---

Member Data Documentation

std::map<float, Color> tlp::ColorScale::colorMap [protected]

bool tlp::ColorScale::colorScaleSet [protected]

bool tlp::ColorScale::gradient [protected]
